3D modeling and piping design services for the evaporation and concentration process of the POSCO Lithium Hydroxide Project Stage 2.
Project · Overview
Design · fabrication · commissioning.

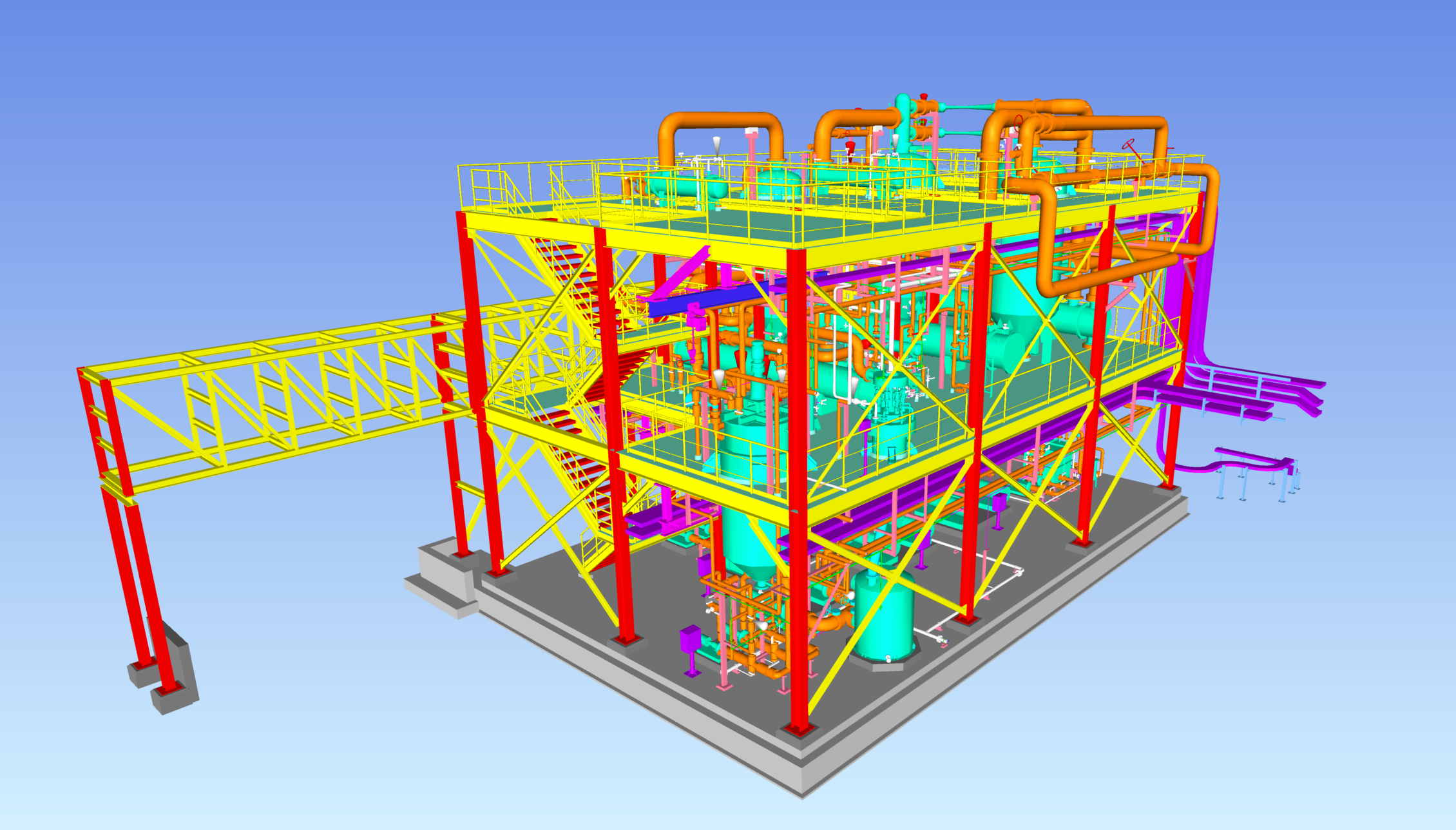

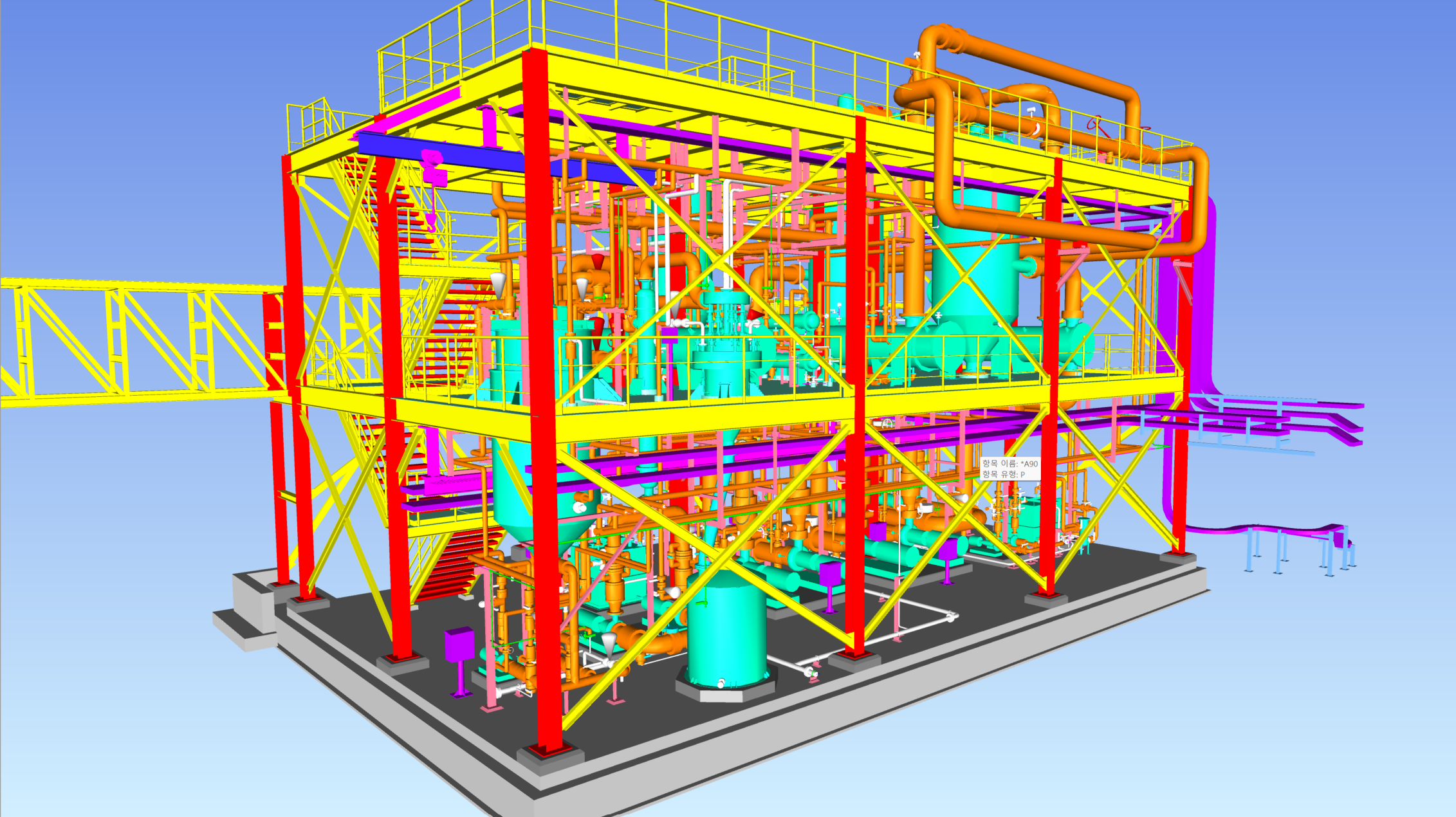

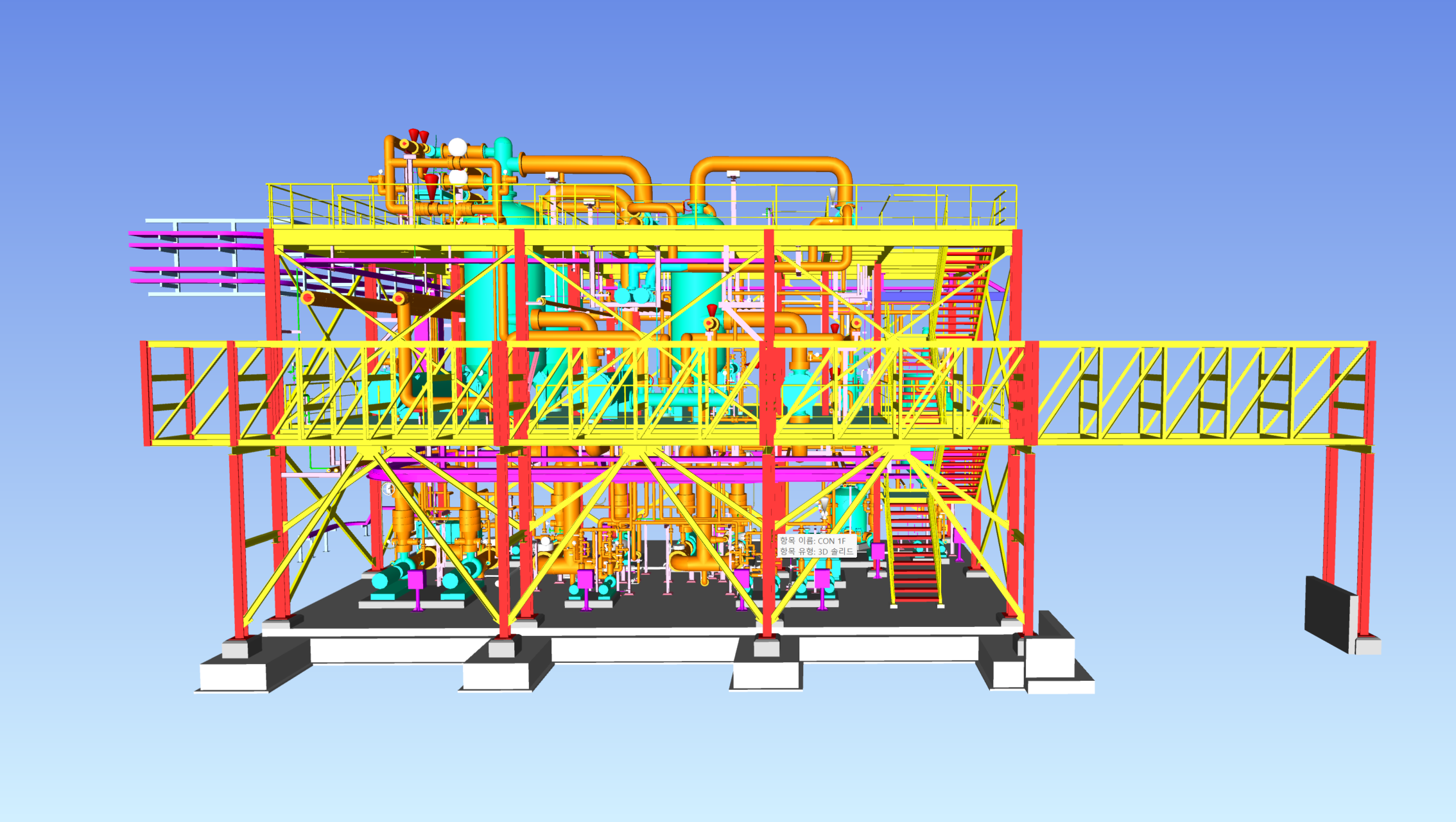

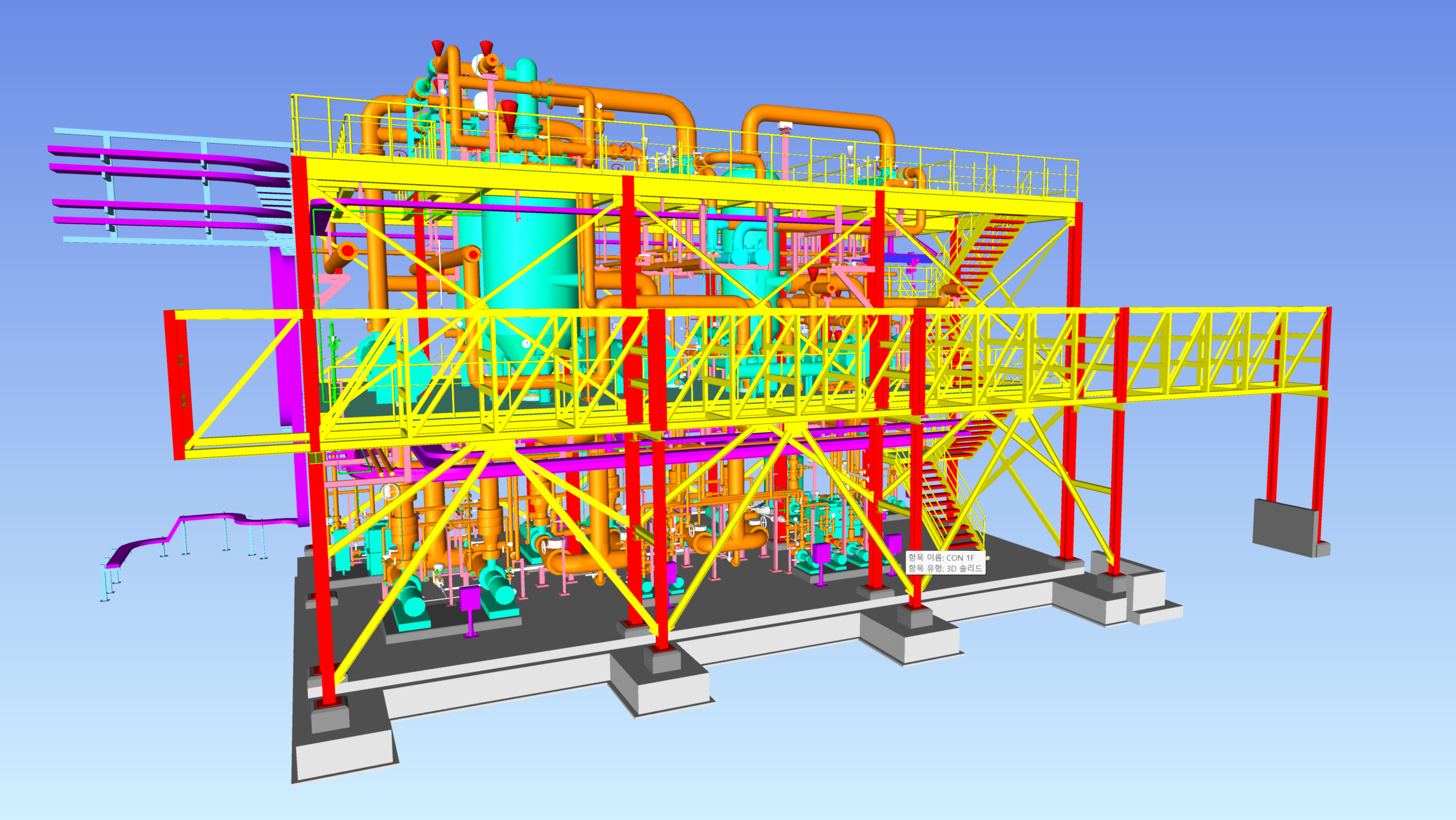

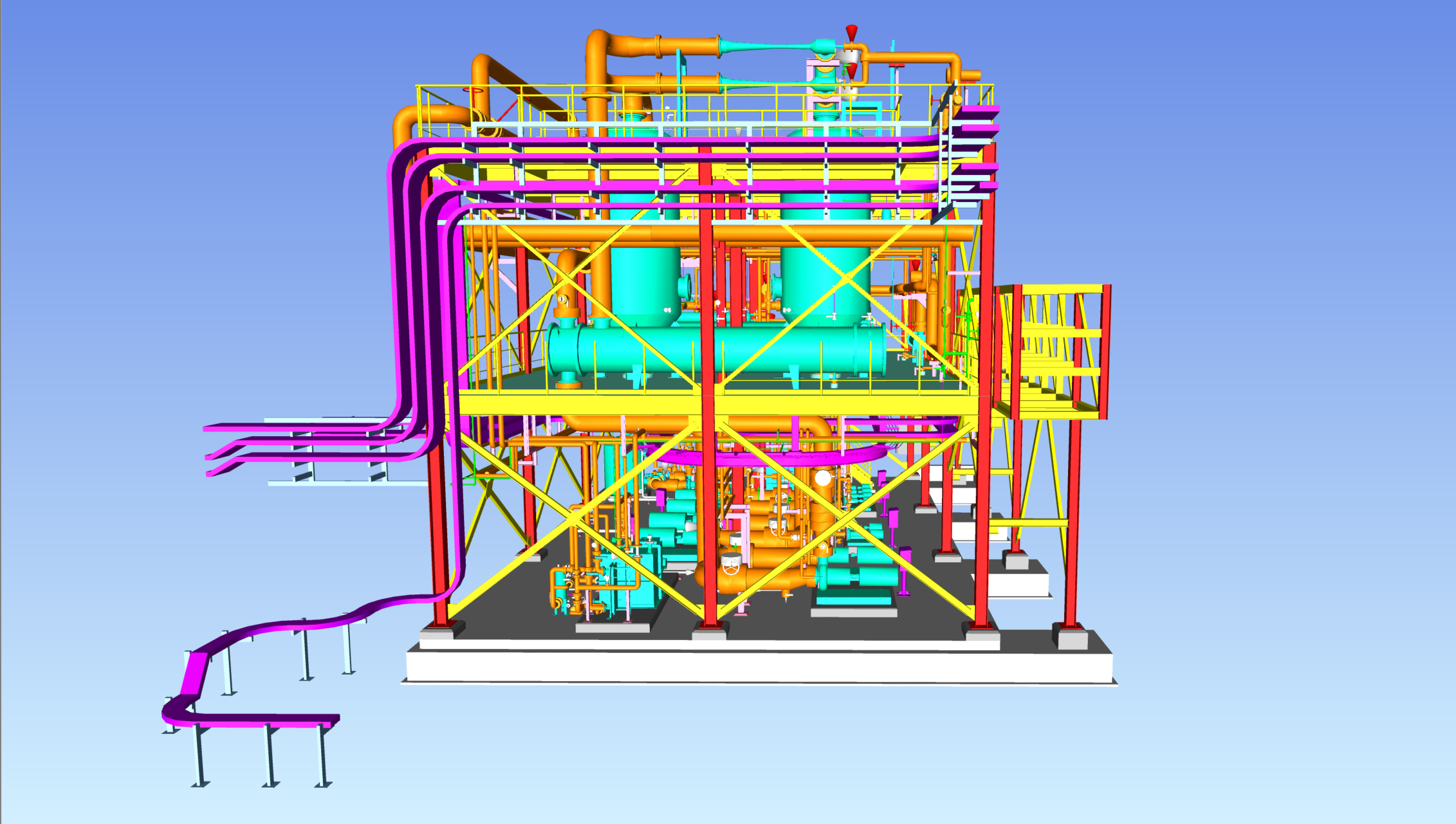

This project involves 3D modeling and piping design for the evaporation and concentration process of the POSCO Lithium Hydroxide Stage 2 Project. Based on the client's specifications, P&ID, and GA drawings, we conducted a piping routine study and implemented precise 3D models using CADWORX. We generated Support Plans, Detail DWGs, ISO drawings, and BOMs, and completed the As-Built documentation reflecting on-site construction.
Highlights
What this project proved.
- CADWORX-based 3D model with Navisworks-reviewable file deliverable
- Scope includes P&ID, GA, piping routine study, equipment drawings, ISO, and BOM
- Model reviews at 60%, 90%, and 100%, with one final As-Built revision condition
